SP Series

SP Series 209 views

product

Arc welding, spot welding, laser welding, cutting

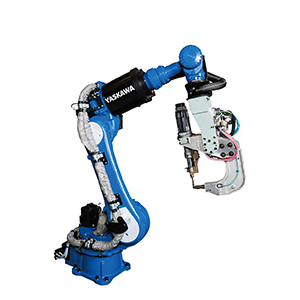

SP100

Exceptionally Fast, Low-Profile Spot Welding Robot

Fast axis speeds and acceleration capabilities for the reduction of air-cut time make the six-axis SP100 robot an ideal choice for spot welding applications. While the slim profile allows close proximity placement of robots for high-density workcells, the integrated spot harness improves wrist flexibility for reduced downtime. Optimized servo gun and DC timer technology, along with spot monitoring, waveform graphing, controller connectivity, and a single power and control cable work together to increase quality and productivity. Engineered with a wide wrist motion range for improved application flexibility, the SP100 enables simplified programming for complicated parts.

Payload 100 kg

Max working range (Horizontal Reach) 2236 mm

Technical Details

Controlled Axes 6
Payload 100 kg
Max Working Range 2236 mm
Repeatability 0.07 mm
Weight 695 kg
Power Supply 5 KVA
S Axis (Maximum Speed) 140 º/sec
L Axis (Maximum Speed) 110 º/sec
U Axis (Maximum Speed) 130 º/sec
R Axis (Maximum Speed) 175 º/sec
B Axis (Maximum Speed) 175 º/sec
T Axis (Maximum Speed) 255 º/sec



Mounting Options

Floor



Industry / Application

  • Automotive
  • Iron & Steel
  • Welding



Perfect with

YRC1000

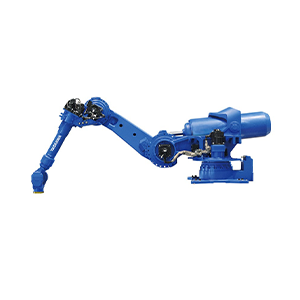

SP150R

Shelf-Mounted Spot Welding Robot

Designed for exceptional spot welding performance, the six-axis SP150R shelf-mounted robot offers incredibly quick axis speeds and acceleration capabilities to reduce air-cut time. The SP150R robot features a slim profile to facilitate reaching into tight spaces and close proximity placement of robots for high-density layouts, and it has high moment and inertia ratings for accommodating a wide range of spot guns and other end-of-arm tooling. While optimized servo gun and DC timer technology help to increase quality and productivity, spot monitoring and waveform graphing help to monitor and troubleshoot welding conditions. Engineered with a wide wrist motion range for increased application flexibility, the SP150R enables simplified programming for complicated parts.

Payload 150 kg

Max working range (Horizontal Reach) 3140 mm

Technical Details

Controlled Axes 6
Payload 150 kg
Max Working Range 3,140 mm
Repeatability 0.2 mm
Weight 1,820 kg
Power Supply 5 KVA
S Axis (Maximum Speed) 105 º/sec
L Axis (Maximum Speed) 105 º/sec
U Axis (Maximum Speed) 105 º/sec
R Axis (Maximum Speed) 175 º/sec
B Axis (Maximum Speed) 150 º/sec
T Axis (Maximum Speed) 240 º/sec



Mounting Options

Shelf-mounted



Industry / Application

  • Automotive
  • Iron & Steel
  • Welding



Perfect with

YRC1000

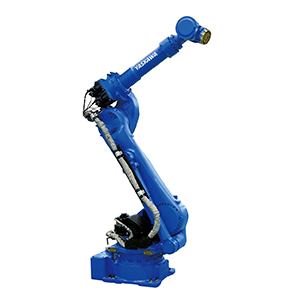

SP165

High-Payload, Six-Axis Spot Welding Robot

Designed for exceptional spot welding performance, the SP165 robot offers fast axis speeds and acceleration capabilities to decrease air-cut time. An integrated spot harness improves robot wrist capability for reduced downtime, while servo gun and DC timer technology optimize quality and productivity. A wide wrist motion range improves application flexibility, and the slim robot profile enables reaching into tight areas and facilitates close placement of robots for high-density layouts.

Payload 165 kg

Max working range (Horizontal Reach) 2702 mm

Technical Details

Controlled Axes 6
Payload 165 kg
Max Working Range 2702 mm
Repeatability 0.2 mm
Weight 1,020 kg
Power Supply 5 KVA
S Axis (Maximum Speed) 125 º/sec
L Axis (Maximum Speed) 115 º/sec
U Axis (Maximum Speed) 125 º/sec
R Axis (Maximum Speed) 182 º/sec
B Axis (Maximum Speed) 175 º/sec
T Axis (Maximum Speed) 265 º/sec



Mounting Options

Floor



Perfect with

YRC1000



SP165-105

Extended-Reach, Slim Profile Spot Welding Robot

Built for exceptional spot welding performance, the six-axis SP165-105 robot is fast, powerful and precise. Eliminating the need for a linear track, this extended-reach robot offers fast axis speeds and acceleration capabilities to reduce air-cut time. An integrated spot harness improves robot wrist movement, while servo gun and DC timer technology optimize quality and productivity. The wide wrist motion range improves application flexibility, and a slim robot design enables robot reach into confined spaces for high-density robot placement.

Payload 105 kg

Max working range (Horizontal Reach) 3058 mm

Technical Details

Controlled Axes 6
Payload 105 kg
Max Working Range 3058 mm
Repeatability 0.2 mm
Weight 1,090 kg
Power Supply 5 KVA
S Axis (Maximum Speed) 125 º/sec
L Axis (Maximum Speed) 115 º/sec
U Axis (Maximum Speed) 125 º/sec
R Axis (Maximum Speed) 182 º/sec
B Axis (Maximum Speed) 175 º/sec
T Axis (Maximum Speed) 265 º/sec



Mounting Options

Floor



Perfect with

YRC1000

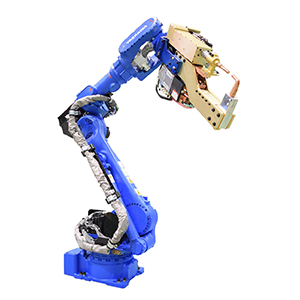

SP180H

Powerful and Fast, Hollow-Arm Robot

With fast axis speeds and acceleration capabilities to reduce air-cut time and optimize production output, the SP180H robot reduces interference and simplifies programming. A wide wrist motion range improves spot gun positioning and application flexibility, and an integrated spot harness in the hollow arm provides cable protection and minimizes downtime. The slim robot design enables the robot to reach into confined parts and tight spaces, and it enables the close proximity placement of robots for high-density workcells.

Payload 180 kg

Max working range (Horizontal Reach) 2702 mm

Technical Details

Controlled Axes 6
Payload 180 kg
Max Working Range 2,702 mm
Repeatability 0.2 mm
Weight 1,080 kg
Power Supply 5 KVA
S Axis (Maximum Speed) 120 º/sec
L Axis (Maximum Speed) 97 º/sec
U Axis (Maximum Speed) 115 º/sec
R Axis (Maximum Speed) 150 º/sec
B Axis (Maximum Speed) 150 º/sec
T Axis (Maximum Speed) 230 º/sec



Mounting Options

Shelf-mounted



Industry / Application

  • Automotive
  • Iron & Steel
  • Welding



Combinable Products

GP7 GP8 GP12 GP25 GP50

GP110 GP180 GP215 GP225 GP250



Perfect with

YRC1000

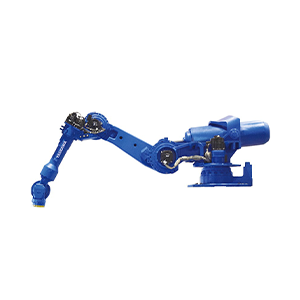

SP185R

Shelf-Mounted Spot Welding Robot

Engineered for fast and accurate spot welding performance, the six-axis SP185R shelf-mounted robot offers incredibly quick axis speeds and acceleration capabilities to reduce air-cut time. The SP185R robot features a slim profile to facilitate reaching into tight spaces and close proximity placement of robots for high-density layouts, and it has high moment and inertia ratings for accommodating a wide range of spot guns and other end-of-arm tooling. While optimized servo gun and DC timer technology help to increase quality and productivity, spot monitoring and waveform graphing help to monitor and troubleshoot welding conditions. Engineered with a wide wrist motion range for increased application flexibility, the SP185R enables simplified programming for complicated parts.

Payload 185 kg

Max working range (Horizontal Reach) 3140 mm



Technical Details

Controlled Axes 6
Payload 185 kg
Max Working Range 3,140 mm
Repeatability 0.2 mm
Weight 1,890 kg
Power Supply 5 KVA
S Axis (Maximum Speed) 90 º/sec
L Axis (Maximum Speed) 85 º/sec
U Axis (Maximum Speed) 85 º/sec
R Axis (Maximum Speed) 120 º/sec
B Axis (Maximum Speed) 120 º/sec
T Axis (Maximum Speed) 190 º/sec



Mounting Options

Shelf-mounted



Perfect with

YRC1000

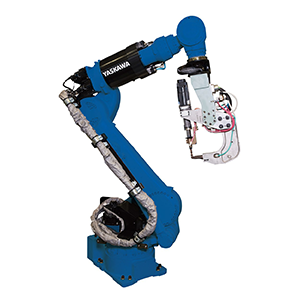

SP210

Low-Profile, High-Payload Spot Welding Robot

Engineered for exceptional spot welding performance, the six-axis SP210 robot offers incredibly quick axis speeds and acceleration capabilities to reduce air-cut time. While an integrated spot harness improves wrist flexibility for reduced downtime, the slim profile facilitates reaching into tight spaces and close proximity placement of robots for high-density workcells. Optimized servo gun and DC timer technology, along with spot monitoring, waveform graphing, controller connectivity, and a single power and control help to improve quality and productivity. Engineered with a wide wrist motion range for increased application flexibility, the SP210 enables simplified programming for complicated parts.

Payload 210 kg

Max working range (Horizontal Reach) 2702 mm

Technical Details

Controlled Axes 6
Payload 210 kg
Max Working Range 2,702 mm
Repeatability 0.2 mm
Weight 1,145 kg
Power Supply 5 KVA
S Axis (Maximum Speed) 120 º/sec
L Axis (Maximum Speed) 97 º/sec
U Axis (Maximum Speed) 115 º/sec
R Axis (Maximum Speed) 145 º/sec
B Axis (Maximum Speed) 145 º/sec
T Axis (Maximum Speed) 220 º/sec



Mounting Options

Floor



Perfect with

YRC1000

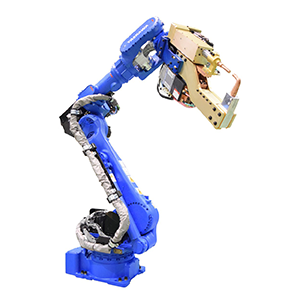

SP225H

High Payload, Hollow-Arm Robot

Featuring exceptionally fast axis speeds and acceleration capabilities, the SP225H robot reduces air-cut time and optimizes production output. The robot’s hollow upper arm reduces interference and simplifies programming, and a wide wrist motion range optimizes spot gun positioning and application flexibility. An integrated spot harness in the hollow arm offers cable protection and reduces downtime. The SP225H also offers a slim robot profile to reach into tight spaces and allows close proximity placement of robots for high-density layouts.

Payload 225 kg

Max working range (Horizontal Reach) 2702 mm

Technical Details

Controlled Axes 6
Payload 225 kg
Max Working Range 2,702 mm
Repeatability 0.2 mm
Weight 1,110 kg
Power Supply 5 KVA
S Axis (Maximum Speed) 120 º/sec
L Axis (Maximum Speed) 97 º/sec
U Axis (Maximum Speed) 115 º/sec
R Axis (Maximum Speed) 150 º/sec
B Axis (Maximum Speed) 150 º/sec
T Axis (Maximum Speed) 230 º/sec



Mounting Options

Shelf-mounted



Industry / Application

  • Automotive
  • Iron & Steel
  • Welding



Combinable Products

GP7 GP8 GP12 GP25 GP50

GP110 GP180 GP215 GP225 GP250



Perfect with

YRC1000



SP80

Flexible and Fast, Low-Profile Spot Welding Robot

Engineered for superior spot welding performance, the six-axis SP80 robot offers exceptionally quick axis speeds and acceleration capabilities to reduce air-cut time. While a wide wrist motion range eliminates interference, a slim profile design facilitates reaching into tight spaces and close proximity placement of robots for high-density workcells. An integrated spot harness improves robot wrist motion, and servo gun and DC timer technology facilitate quality production output. Spot monitoring, waveform graphing, controller connectivity, and a single power and control cable make the SP80 the ideal robot to simplify the welding process for complicated parts.

Payload 80 kg

Max working range (Horizontal Reach) 2236 mm

Technical Details

Controlled Axes 6
Payload 80 kg
Max Working Range 2236 mm
Repeatability 0.07 mm
Weight 655 kg
Power Supply 4 KVA
S Axis (Maximum Speed) 170 º/sec
L Axis (Maximum Speed) 140 º/sec
U Axis (Maximum Speed) 160 º/sec
R Axis (Maximum Speed) 230 º/sec
B Axis (Maximum Speed) 230 º/sec
T Axis (Maximum Speed) 350 º/sec



Mounting Options

Floor Wall Ceiling



Perfect with

YRC1000
