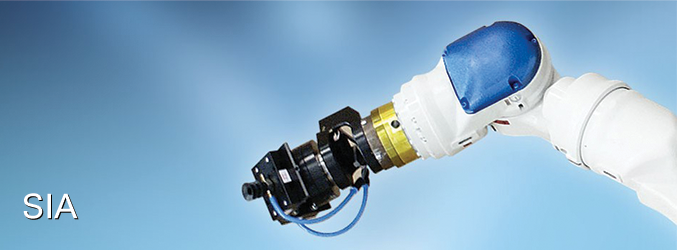

SIA

SIA 266 views

product

Application, machine tending, processing, and press brake tending

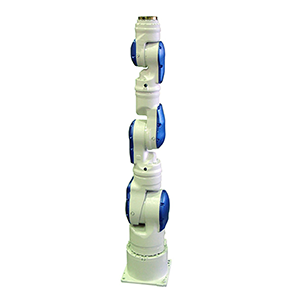

SIA10D

Slim and Agile Industrial Robot

Slim, 7-axis design optimizes space; provides “human-like” flexibility and range of motion, even in tight spaces. Mounts virtually anywhere in any orientation. Can be used in environments that are hazardous to humans.

Payload 10 kg

Max working range 720 mm



Technical Details

Controlled Axes 7
Payload 10 kg
Max Working Range 720 mm
Repeatability 0.1 mm
Weight 60 kg
Power Supply 1.5 KVA
S Axis (Maximum Speed) 170 º/sec
L Axis (Maximum Speed) 170 º/sec
U Axis (Maximum Speed) 170 º/sec
R Axis (Maximum Speed) 200 º/sec
B Axis (Maximum Speed) 200 º/sec
T Axis (Maximum Speed) 400 º/sec



Mounting Options

Floor Wall Ceiling



Industry / Application

  •  Electrics / Electronics
  •  Handling / Assembly



Perfect with

FS100



SIA10F

Compact 7-Axis Robot Arm

With a 10kg payload, this agile robot opens up a wide range of industrial applications; ideal for assembly, injection molding, inspection, machine tending and a host of other operations. Seven-axis actuator-based design and best-in-class wrist performance characteristics provide amazing freedom of movement, coupled with ability to maneuver in very tight areas.

Payload 10 kg

Max working range 720 mm



Technical Details

Controlled Axes 7
Payload 10 kg
Max Working Range 720 mm
Repeatability 0.1 mm
Weight 60 kg
Power Supply 1.5 KVA
S Axis (Maximum Speed) 170 º/sec
L Axis (Maximum Speed) 170 º/sec
U Axis (Maximum Speed) 170 º/sec
R Axis (Maximum Speed) 200 º/sec
B Axis (Maximum Speed) 200 º/sec
T Axis (Maximum Speed) 400 º/sec



Mounting Options

Floor Wall Ceiling



Industry / Application

  •  Electrics / Electronics
  •  Handling / Assembly



Perfect with

FS100



SIA20D

Compact 7-Axis Robot Arm

The 7-axis actuator-based design and best-in-class wrist performance characteristics for the SIA20D provide amazing freedom of movement, coupled with ability to maneuver in very tight areas. Superior dexterity enables robot to reorient elbow(s) without affecting hand position or causing self-interference. n Agile, versatile robot opens up.

Payload 20 kg

Max working range 910 mm



Technical Details

Controlled Axes 7
Payload 20 kg
Max Working Range 910 mm
Repeatability 0.1 mm
Weight 120 kg
Power Supply 2.2 KVA
S Axis (Maximum Speed) 130 º/sec
L Axis (Maximum Speed) 130 º/sec
U Axis (Maximum Speed) 170 º/sec
R Axis (Maximum Speed) 200 º/sec
B Axis (Maximum Speed) 200 º/sec
T Axis (Maximum Speed) 400 º/sec



Mounting Options

Floor Wall Ceiling



Industry / Application

  • Electrics / Electronics
  • Handling / Assembly



Perfect with

FS100

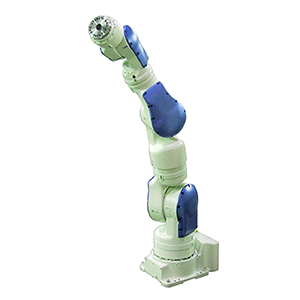

SIA20F

Agile Articulated Robot Arm

Agile, versatile 20kg-capacity opens up a wide range of industrial applications to robots; ideal for assembly, injection molding, inspection, machine tending and a host of other operations. 7-axis actuator-based design and best-in-class wrist performance characteristics provide amazing freedom of movement, coupled with ability to maneuver in very tight areas.

Payload 20 kg

Max working range 910 mm

Technical Details

Controlled Axes 7
Payload 20 kg
Max Working Range 910 mm
Repeatability 0.1 mm
Weight 120 kg
Power Supply 2.2 KVA
S Axis (Maximum Speed) 130 º/sec
L Axis (Maximum Speed) 130 º/sec
U Axis (Maximum Speed) 170 º/sec
R Axis (Maximum Speed) 200 º/sec
B Axis (Maximum Speed) 200 º/sec
T Axis (Maximum Speed) 400 º/sec



Mounting Options

Floor Wall Ceiling



Industry / Application

  • Electrics / Electronics
  • Handling / Assembly



Video



SIA30D

Slim and Compact Robotic Arm

Slim, 7-axis design optimizes space; provides “human-like” flexibility and range of motion, even in tight spaces. Mounts virtually anywhere in any orientation: Short axis lengths and extreme motion flexibility allow slim manipulator to be positioned out of normal working area (floor-, ceiling-, wall-, incline- or machine-mounted)

Slim, compact and powerful – robot can straighten vertically to take up a very small footprint and is only 365.5 mm wide at widest point.

Payload 30 kg

Max working range 1485 mm



Technical Details

Controlled Axes 7
Payload 30 kg
Max Working Range 1485 mm
Repeatability 0.1 mm
Weight 345 kg
Power Supply 3.0 KVA
S Axis (Maximum Speed) 130 º/sec
L Axis (Maximum Speed) 130 º/sec
U Axis (Maximum Speed) 130 º/sec
R Axis (Maximum Speed) 170 º/sec
B Axis (Maximum Speed) 170 º/sec
T Axis (Maximum Speed) 200 º/sec



Mounting Options

Floor Wall Ceiling



Industry / Application

  •  Electrics / Electronics
  •  Handling / Assembly



Perfect with

FS100



SIA50D

50kg Payload 7-Axis Robot

Amazing agility for a 50kg payload: This articulated robot is ideal for assembly, injection molding, inspection, machine tending and a host of other operations. 7-axis actuator-based design and best-in-class wrist performance characteristics provide amazing freedom of movement, coupled with ability to maneuver in very tight areas.

Payload 50 kg

Max working range 1630 mm



Technical Details

Controlled Axes 7
Payload 50 kg
Max Working Range 1630 mm
Repeatability 0.1 mm
Weight 640 kg
Power Supply 8.7 KVA
S Axis (Maximum Speed) 170 º/sec
L Axis (Maximum Speed) 130 º/sec
U Axis (Maximum Speed) 130 º/sec
R Axis (Maximum Speed) 130 º/sec
B Axis (Maximum Speed) 130 º/sec
T Axis (Maximum Speed) 200 º/sec



Mounting Options

Floor



Industry / Application

  • Electrics / Electronics
  • Handling / Assembly



Perfect with

FS100



SIA5D

Versatile 7-Axis Robot

The SIA Series best-in-class wrist performance characteristics provides amazing freedom of movement. Its 7-axis actuator-based design and, coupled with ability to maneuver in very tight areas make this versatile robot ideal for a wide range of industrial applications: assembly, injection molding, inspection, machine tending and a host of other operations.

Payload 5 kg

Max working range (Horizontal Reach) 559 mm

Technical Details

Controlled Axes 7
Payload 5 kg
Max Working Range 559 mm
Repeatability 0.06 mm
Weight 30 kg
Power Supply 1 KVA
S Axis (Maximum Speed) 200 º/sec
L Axis (Maximum Speed) 200 º/sec
U Axis (Maximum Speed) 200 º/sec
R Axis (Maximum Speed) 200 º/sec
B Axis (Maximum Speed) 230 º/sec
T Axis (Maximum Speed) 350 º/sec



Mounting Options

Floor Wall Ceiling





Industry / Application

  • Electrics / Electronics
  • Handling / Assembly



Video



Perfect with

FS100

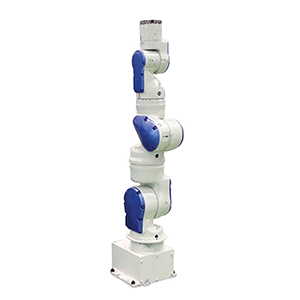

SIA5F

7-Axis Articulated Arm

Agile, versatile robot opens up a wide range of industrial applications to robots; ideal for assembly, injection molding, inspection, machine tending and a host of other operations. 7-axis actuator-based design and best-in-class wrist performance characteristics provide amazing freedom of movement, coupled with ability to maneuver in very tight areas.

Payload 5 kg

Max working range (Horizontal Reach) 559 mm



Technical Details

Controlled Axes 7
Payload 5 kg
Max Working Range 559 mm
Repeatability 0.05 mm
Weight 30 kg
Power Supply 1 KVA
S Axis (Maximum Speed) 200 º/sec
L Axis (Maximum Speed) 200 º/sec
U Axis (Maximum Speed) 200 º/sec
R Axis (Maximum Speed) 200 º/sec
B Axis (Maximum Speed) 230 º/sec
T Axis (Maximum Speed) 350 º/sec



Mounting Options

Floor Wall Ceiling



Industry / Application

  • Electrics / Electronics
  • Handling / Assembly

Video



Perfect with

FS100
