GP Series

GP Series 389 views

product

Application, machine tending, processing, and press brake tending.

GP7

6-Axis Handling and General Application Robot

Ideal for high-speed assembly and handling applications, the GP7 robot is fast, compact and efficient. Offering the highest payload, fastest speed and highest wrist allowable moment in its class, this robot is controlled with the YRC1000 controller and can be programmed with the lightweight standard teach pendant or the easy-to-use touchscreen Smart Pendant.

Payload 7 kg

Max working range 927mm

Technical Details

Controlled Axes 6
Payload 7 kg
Max Working Range 927 mm
Repeatability 0.03 mm
Weight 34 kg
Power Supply 1 KVA
S Axis 375 º/sec
L Axis 315 º/sec
U Axis 410 º/sec
R Axis 550 º/sec
B Axis 550 º/sec
T Axis 1000 º/sec



Mounting Options

Floor Wall Ceiling



Industry / Application

  • Automotive
  • Electrics / Electronics
  • Iron & Steel
  • Food Processing, Packaging
  • Textiles
  • Handling / Assembly



Video



Combinable Product

GP7 GP8 GP12 GP25 GP50

GP110 GP180 GP215 GP225 GP250



Perfect

YRC1000 YRC1000micro



GP8

Six-Axis High-Speed Assembly and Handling Robot

Ideal for high-speed assembly and handling applications, the GP8 robot is fast and compact. Not only does this highly efficient robot offer the highest payload, fastest speed and highest wrist allowable moment in its class, but also it can be controlled by either the YRC1000 controller or the YRC1000micro controller. The YRC1000 utilizes the lightweight standard teach pendant or the easy-to-use touchscreen Smart Pendant, and the YRC1000micro is available for use with the standard teach pendant.

Payload 8 kg

Max working range 727 mm



Technical Details

Controlled Axes 6
Payload 8 kg
Max Working Range 727 mm
Repeatability 0.02 mm
Weight 32 kg
Power Supply 1 KVA
S Axis 455 º/sec
L Axis 385 º/sec
U Axis 520 º/sec
R Axis 550 º/sec
B Axis 550 º/sec
T Axis 1000 º/sec



Mounting Options

Floor Wall Ceiling



Industry / Application

  • Automotive
  • Electrics / Electronics
  • Iron & Steel
  • Food Processing, Packaging
  • Textiles
  • Handling / Assembly



Video



Combinable Products

GP7 GP8 GP12 GP25 GP50

GP110 GP180 GP215 GP225 GP250



Perfect with

YRC1000 YRC1000micro



GP12

High-Speed Multi-Purpose Robot

Achieve high transfer capability with the extremely fast and efficient GP12 robot. Offering number-one payload, speed and wrist allowable moment in its class, this robot is controlled with the YRC1000 controller and can be programmed with the lightweight standard teach pendant or the easy-to-use touchscreen Smart Pendant.

Payload 12 kg

Max working range 1440 mm



Technical Details

Controlled Axes 6
Payload 12 kg
Max Working Range 1440 mm
Repeatability 0.08 mm
Weight 150 kg
Power Supply 1.5 KVA
S Axis 260 º/sec
L Axis 230 º/sec
U Axis 260 º/sec
R Axis 470 º/sec
B Axis 470 º/sec
T Axis 700 º/sec



Mounting Options

Floor Wall Ceiling



Industry / Application

  •  Automotive
  •  Electrics / Electronics
  •  Iron & Steel
  •  Food Processing, Packaging
  •  Textiles
  •  Handling / Assembly

Video



Combinable Products

GP7 GP8 GP12 GP25 GP50

GP110 GP180 GP215 GP225 GP250



Perfect with

YRC1000 YRC1000micro



GP25

Fast and Efficient Handling

The MOTOMAN GP25 is a compact and flexible handling robot which provides a payload of 25 kg.

Easy set-up and maintenance and a wrist structure with great environment resistance improve efficiency in installation, operation and maintenance of equipment.

Payload 25 kg

Max working range 1730 mm



Technical Details

Controlled Axes 6
Payload 25 kg
Max Working Range 1730 mm
Repeatability 0.06 mm
Weight 250 kg
Power Supply 2 KVA
S Axis 210 º/sec
L Axis 210 º/sec
U Axis 265 º/sec
R Axis 420 º/sec
B Axis 420 º/sec
T Axis 885 º/sec



Mounting Options

Floor Wall Ceiling



Industry / Application

  • Automotive
  • Electrics / Electronics
  • Iron & Steel
  • Food Processing, Packaging
  • Textiles
  • Handling / Assembly



Video



Combinable Products

GP7 GP8 GP12 GP25 GP50

GP110 GP180 GP215 GP225 GP250



Perfect with

YRC1000



GP50

Long Reach, Six-Axis General Purpose Robot

Offering high speeds and mounting flexibility for a large range of applications, the GP50 long reach robot offers outstanding performance for increased production output. Fast axis speeds and acceleration capabilities decrease cycle time, while high moment and inertia ratings support the handling of large and heavy payloads. The reduced interference design allows for high-density robot placement, and a streamlined upper arm provides easy access to parts in tight areas.

Payload 50 kg

Max working range 2061 mm



Technical Details

Controlled Axes 6
Payload 50 kg
Max Working Range 2061 mm
Repeatability 0.07 mm
Weight 570 kg
Power Supply 4 KVA
S Axis 180 º/sec
L Axis 187 º/sec
U Axis 187 º/sec
R Axis 250 º/sec
B Axis 250 º/sec
T Axis 360 º/sec



Mounting Options

Floor Wall Ceiling



Industry / Application

  • Automotive
  • Electrics / Electronics
  • Iron & Steel
  • Food Processing, Packaging
  • Textiles
  • Handling / Assembly

Video



Combinable Products

GP7 GP8 GP12 GP25 GP50

GP110 GP180 GP215 GP225 GP250



Perfect with

YRC1000



GP110

Fast, Low-Profile Multi-Purpose Robot

Equipped to handle high payloads for heavy part processing, the powerful six-axis GP110 robot increases productivity for a wide selection of tasks.

Payload 110 kg

Max working range 2236 mm



Technical Details

Controlled Axes 6
Payload 110 kg
Max Working Range 2236 mm
Repeatability 0.07 mm
Weight 660 kg
Power Supply 5 KVA
S Axis 140 º/sec
L Axis 110 º/sec
U Axis 130 º/sec
R Axis 175 º/sec
B Axis 175 º/sec
T Axis 255 º/sec



Mounting Options

Floor



Industry / Application

  • Automotive

  • Electrics / Electronics

  • Iron & Steel

  • Food Processing, Packaging

  • Textiles

  • Handling / Assembly

Video



Combinable Products

GP7 GP8 GP12 GP25 GP50

GP110 GP180 GP215 GP225 GP250



Perfect with

YRC1000

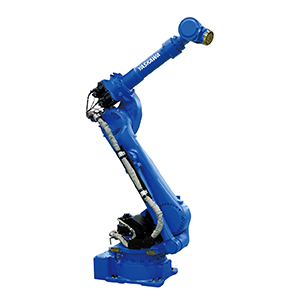

GP180

Powerful, High-Payload Handling Robot

The six-axis GP180 robot provides fast and accurate performance to boost productivity for high-payload handling applications. Featuring a wide work envelope, this robot uses a streamlined upper arm for easy access to parts in confined spaces. While the wide wrist motion range reduces interference with fixtures, the reduced interference design enables close proximity placement of robots. Fast axis speeds and powerful acceleration capabilities, combined with high moment and inertia ratings, equip the GP180 robot to efficiently handle larger and heavier payloads for superior performance.

Payload 180 kg

Max working range 2702 mm

Technical Details

Controlled Axes 6
Payload 180 kg
Max Working Range 2702 mm
Repeatability 0.2 mm
Weight 1020 kg
Power Supply 5 KVA
S Axis 180 º/sec
L Axis 76 º/sec
U Axis 90 º/sec
R Axis 360 º/sec
B Axis 130 º/sec
T Axis 360 º/sec



Mounting Options

Floor



Industry / Application

  •  Automotive
  •  Electrics / Electronics
  •  Iron & Steel
  •  Food Processing, Packaging
  •  Textiles
  •  Handling / Assembly



Video



Combinable Products

GP7 GP8 GP12 GP25 GP50

GP110 GP180 GP215 GP225 GP250



Perfect with

YRC1000



GP215

Powerful and Versatile Multi-Purpose Robot

A wide wrist motion range, and high moment and inertia ratings make the GP215 robot ideal for heavy part processing. Fast and precise, the six-axis GP215 robot enables increased productivity for a variety of applications.

Payload 215 kg

Max working range 2912 mm

Technical Details

Controlled Axes 6
Payload 215 kg
Max Working Range 2912 mm
Repeatability 0.2 mm
Weight 1340 kg
Power Supply 5 KVA
S Axis 100 º/sec
L Axis 90 º/sec
U Axis 97 º/sec
R Axis 120 º/sec
B Axis 120 º/sec
T Axis 190 º/sec



Mounting Options

Floor



Industry / Application

  •  Automotive
  •  Electrics / Electronics
  •  Iron & Steel
  •  Food Processing, Packaging
  •  Textiles
  •  Handling / Assembly



Video



Combinable Products

GP7 GP8 GP12 GP25 GP50

GP110 GP180 GP215 GP225 GP250



Perfect with

YRC1000



GP225

GP225 Multi-Purpose Robot

Engineered with high moment and inertia ratings to handle high payloads for heavy part processing, the fast and precise six-axis GP225 robot enables increased productivity for a variety of applications. While exceptionally fast axis speeds and acceleration capabilities increase production output, a streamlined upper arm with a slim wrist profile facilitates easier reach into tight spaces, optimizing application flexibility.

Payload 225 kg

Max working range 2702 mm

Technical Details

Controlled Axes 6
Payload 225 kg
Max Working Range 30 mm
Repeatability 0.02 mm
Weight 1080 kg
Power Supply 5 KVA
S Axis 120 º/sec
L Axis 97 º/sec
U Axis 115 º/sec
R Axis 145 º/sec
B Axis 145 º/sec
T Axis 220 º/sec



Mounting Options

Floor



Video



Combinable Products

GP7 GP8 GP12 GP25 GP50

GP110 GP180 GP215 GP225 GP250



Perfect with

YRC1000



GP250

Versatile and Powerful Multi-Purpose Robot

The MOTOMAN GP250 handling robot provides a payload of 250 kg and a maximum reach of 2710 mm.

Payload 250 kg

Max working range 2710 mm



Technical Details

Controlled Axes 6
Payload 250 kg
Max Working Range 2710 mm
Repeatability 0.2 mm
Weight 1345 kg
Power Supply 5 KVA
S Axis 100 º/sec
L Axis 90 º/sec
U Axis 97 º/sec
R Axis 120 º/sec
B Axis 120 º/sec
T Axis 190 º/sec



Mounting Options

Floor



Industry / Application

  •  Automotive
  •  Electrics / Electronics
  •  Iron & Steel
  •  Food Processing, Packaging
  •  Textiles
  •  Handling / Assembly



Video



Combinable Products


GP7 GP8 GP12 GP25 GP50

GP110 GP180 GP215 GP225 GP250



Perfect with

YRC1000
