High performance painting robots

MPX1150

Compact Painting Robot

The MPX1150 is a high-speed, compact six-axis robot ideal for painting contoured parts such as interior/exterior surfaces.

Payload 5 kg

Max working range (Horizontal Reach) 727 mm

Technical Details

Structure Vertically Articulated
Degree of freedom 6
Payload 5 kg
Repeatability ±0.02 mm
Maximum linear velocity 1.5 m/s
Approx mass 57 kg
Protection structure Basic axes:IP4X Wrist :IP65
Power requirements 1.0 kVA
Applicable control panel DX200



Range of motion

S-axis -170° ~ +170°
L-axis -80° ~ +120°
U-axis -70° ~ +90°
R-axis -190° ~ +190°
B-axis -135° ~ +135°
T-axis -360° ~ +360°



Maximum speed of each axis

S-axis 6.10 rad/s, 350°/s
L-axis 6.10 rad/s, 350°/s
U-axis 6.98 rad/s, 400°/s
R-axis 7.85 rad/s, 450°/s
B-axis 7.85 rad/s, 450°/s
T-axis 12.56 rad/s, 720°/s

**Pressure switch unit installation is required: separate



External dimension, operating range





MOTOMAN-MPX1150 + MOTOFEEDER II

New type rotary feeder "MOTOFEEDER II" in combination

  1. A compant paintbooth can be easily realized.
  2. It is easy to design the coating equipment as a package





For more information -> MOTOFEEDER TILT



Mounting Options

Floor Wall Ceiling



Perfect with

DX200

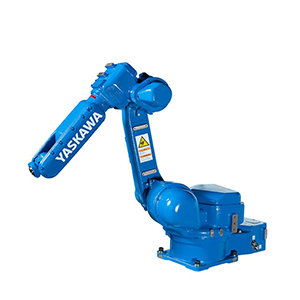

MPX1400

Small Robot Enhanced for Painting

Optimized for painting smaller components, the six-axis MPX1400 robot offers outstanding performance for coating and dispensing applications. Its small footprint slim-arm construction allows for minimum installation space, and a broad motion range facilitates painting multiple parts at the same time. Factory Mutual (FM) approved for Class I, Div. 1 use in hazardous environments, this extremely fast and precise robot features a strait wrist with a 5 kg payload, as well as high allowable moment ratings, making it ideal for mounting a variety of spray guns and small bells.

Payload 5 kg

Max working range (Horizontal Reach) 1,256 mm



Technical Details

Structure Vertically Articulated
Degree of freedom 6
Payload 5 kg
Repeatability ±0.1 mm
Maximum linear velocity 1.5 m/s
Approx mass 120 kg
Protection structure Body:IP4X  Wrist:IP65
Power requirements 1.5 kVA
Applicable control panel DX200



Range of motion

S-axis -170° ~ +170°
L-axis -65° ~ +120°
U-axis -70° ~ +140°
R-axis -190° ~ +190°
B-axis -145° ~ +145°
T-axis -360° ~ +360°



Maximum speed of each axis

S-axis 3.83rad/s, 220°/s
L-axis 3.31rad/s, 190°/s
U-axis 4.18rad/s, 240°/s
R-axis 7.85rad/s, 450°/s
B-axis 7.85rad/s, 450°/s
T-axis 12.56rad/s, 720°/s

**Pressure switch unit installation is required: separate



MOTOMAN-MPX1400 + MOTOFEEDER II

Combination with Rotational Workpiece Feeder for Painting MOTOFEEDER II.

  1. Easy to setup a compact painting booth!
  2. Easy to design painting equipment as a package!





For more information, MOTOFEEDER TILT



Mounting Options

Floor Wall Ceiling



Perfect with

DX200



MPX1950

Compact Robot Optimized for Painting

Optimized for painting small- to medium-sized parts and dispensing applications, the high speed six-axis MPX1950 robot creates a smooth, consistent finish with outstanding efficiency. A small footprint and slim arm design allow for minimum installation space, and a reduced interference envelope enables painting of workpieces closer to the robot.

Payload 7 kg

Max working range (Horizontal Reach) 1450 mm

Technical Details

Controlled Axes 6
Payload 7 kg
Max Working Range 1,450 mm
Repeatability 0.15 mm
Weight 265 kg
Power Supply 2.5 KVA
Maximum Speed 1.5 m/s



Mounting Options

Floor Wall Ceiling



Perfect with

DX200



MPX2600

High-Speed Painting Robot

The MPX2600 is a high-speed, compact six-axis robot ideal for painting contoured parts such as interior/exterior surfaces.Its hollow wrist design has an inside diameter of 70 mm, making it well-suited for mounting spray equipment applicators.

Payload 15 kg

Max working range (Horizontal Reach) 2000 mm

Technical Details

Controlled Axes 6
Payload 15 kg
Max Working Range 2000 mm
Repeatability 0.2 mm
Weight 485 kg
Power Supply 3 KVA
S Axis 120 º/sec
L Axis 120 º/sec
U Axis 120 º/sec
R Axis 360 º/sec
B Axis 360 º/sec
T Axis 360 º/sec



Mounting Options

Floor Wall Ceiling



Video



Perfect with

DX200

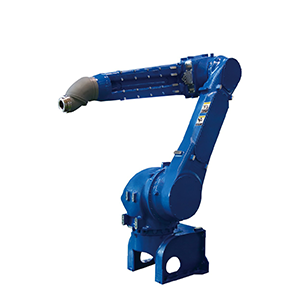

MPX3500

Versatile Coating Robot

The MPX3500 is a high-speed, compact six-axis robot ideal for painting contoured parts such as interior/exterior surfaces.Its hollow wrist design has an inside diameter of 70 mm, making it well-suited for mounting spray equipment applicators.

Payload 15 kg

Max working range (Horizontal Reach) 2700 mm

Technical Details

Controlled Axes 6
Payload 15 kg
Max Working Range 10 mm
Repeatability 0.15 mm
Weight 590 kg
Power Supply 3 KVA
Maximum Speed 2.0 m/s



Mounting Options

Floor Wall Ceiling



Perfect with

DX200
