MotoMINI

MotoMINI 271 views

product

Application, machine tending, processing, and press brake tending

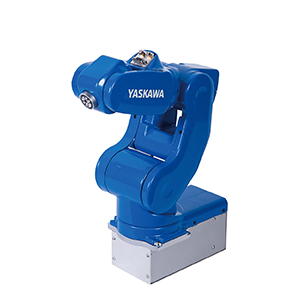

MotoMINI

Smallest and Lightest 6-Axis Robot in the Industry

Equipped with the highest acceleration in a small-sized robot, the MotoMini is 20% faster than comparable small robots, reducing cycle time and boosting productivity. Internal cabling and air lines minimize interference with other process equipment, and a variety of mounting options (surface, wall, ceiling, etc.) accommodate high-density factory layouts. Designed for extremely agile, high-speed performance for a wide range of applications, the quiet, compact and precise MotoMini can take your small-part process to the next level.

Payload 25 kg

Max working range 350 mm



Technical Details

Controlled Axes 6
Payload 0.5 kg
Max Working Range 350 mm
Repeatability 0.02 mm
Weight 7 kg
Power Supply 0.5 KVA
S Axis 315 º/sec
L Axis 315 º/sec
U Axis 420 º/sec
R Axis 600 º/sec
B Axis 600 º/sec
T Axis 600 º/sec



Mounting Options

Floor Wall Ceiling



Video



Perfect with

YRC1000micro
