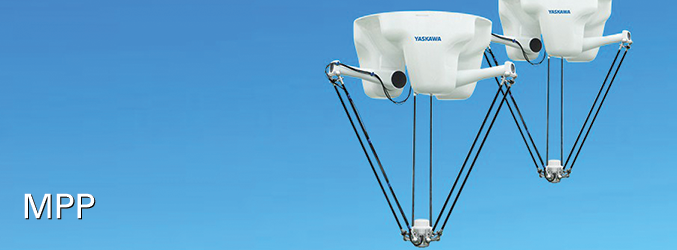

MPP

Pick & Place 169 views

product

Pick & Place

MPP3H

High-Speed Delta Robot

Ideal for primary packaging with performance optimized for payload.

Payload 3 kg

Max working range (Horizontal Reach) 1300 mm

Technical Details

Controlled Axes 4
Payload 3 kg
Max Working Range 1,300 mm
Repeatability 0.1 mm
Weight 115 kg
Power Supply 1.5 KVA
Maximum Speed 1,400 º/sec



Mounting Options

Ceiling



Perfect with

FS100

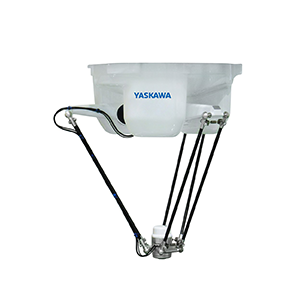

MPP3S

High-speed picking operation

The ideal delta robot for high-speed picking operation - speeds up to 150 cycles per minute (CPM) with full 3 kg payload and up to 185 CPM with 1 kg payload. CPM rate includes 0.04 second per cycle for part acquisition and release. Highly accurate ±0.1 mm repeatability

Payload 3 kg

Max working range (Horizontal Reach) 800 mm

Technical Details

Controlled Axes 4
Payload 3 kg
Max Working Range 800 mm
Repeatability 0.1 mm
Weight 95 kg
Power Supply 1.5 KVA
Maximum Speed 1,400 º/sec



Mounting Options

Ceiling



Perfect with

FS100
