MH Series

MH Series 352 views

product

Application, machine tending, processing, and press brake tending

MH3BM

Compact, Lighter payload

The MH3BM is a robot designed for compact, lighter payload applications such as clean room assembly, drug development, clinical testing and pharmaceutical dispensing. The FS100 is a powerful controller with unmatched open software architecture.

Payload 3 kg

Max working range (Horizontal Reach) 532 mm



Technical Details

Controlled Axes 6
Payload 3 kg
Max Working Range 532 mm
Repeatability 0.03 mm
Weight 27 kg
Power Supply 0.5 KVA
S Axis (Maximum Speed) 310 º/sec
L Axis (Maximum Speed) 150 º/sec
U Axis (Maximum Speed) 190 º/sec
R Axis (Maximum Speed) 300 º/sec
B Axis (Maximum Speed) 300 º/sec
T Axis (Maximum Speed) 420 º/sec



Mounting Options

Floor Wall Ceiling





Industry / Application

  • Handling / Assembly



Video



Perfect with

FS100



MH3F

Compact Robot Arm

The MH3F is a powerful robot designed for more compact, lighter payload applications such as parts assembly, material handling and packaging. The FS100 is a powerful controller with unmatched open software architecture.

Payload 3 kg

Max working range (Horizontal Reach) 532 mm

Technical Details

Controlled Axes 6
Payload 3 kg
Max Working Range 532 mm
Repeatability 0.03 mm
Weight 27 kg
Power Supply 0.5 KVA
S Axis (Maximum Speed) 200 º/sec
L Axis (Maximum Speed) 150 º/sec
U Axis (Maximum Speed) 190 º/sec
R Axis (Maximum Speed) 300 º/sec
B Axis (Maximum Speed) 300 º/sec
T Axis (Maximum Speed) 420 º/sec



Mounting Options

Floor Wall Ceiling



Industry / Application

  • Electrics / Electronics
  • Iron & Steel
  • Food Processing, Packaging
  • Handling / Assembly



Perfect with

FS100

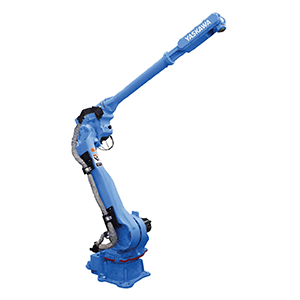

MH50 II-20

Articulated Arm Robot

Powerful, high-speed robot with long/extended articulated arm offers superior performance in arc welding, coating, dispensing, material cutting and handling applications. Wide work envelope with small interference zone allows robot to be placed close to workpieces and equipment which reduces required floorspace.

Payload 20 kg

Max working range (Horizontal Reach) 3106 mm

Technical Details

Controlled Axes 6
Payload 20 kg
Max Working Range 3106 mm
Repeatability 0.15 mm
Weight 495 kg
Power Supply 3.5 KVA
S Axis (Maximum Speed) 180 º/sec
L Axis (Maximum Speed) 178 º/sec
U Axis (Maximum Speed) 178 º/sec
R Axis (Maximum Speed) 400 º/sec
B Axis (Maximum Speed) 400 º/sec
T Axis (Maximum Speed) 600 º/sec



Mounting Options

Floor Wall Ceiling



Industry / Application

  • Automotive
  • Electrics / Electronics
  • Iron & Steel
  • Food Processing, Packaging
  • Textiles
  • Handling / Assembly



Perfect with

DX200

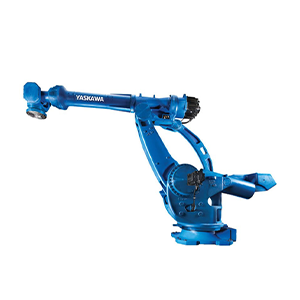

MH900

MH900 Large-Reach, Heavy Payload Robot

The MH900 is a heavy-duty robot for handling large castings and weldments. Its wide work envelope and high moment and inertia ratings make this robot ideal for handling a variety of large, heavy parts. The MH900 also features enhanced safety with control reliable software for guarding (FSU).

Payload 900 kg

Max working range (Horizontal Reach) 4683 mm



Technical Details

Controlled Axes 6
Payload 9,00 kg
Max Working Range 4,683 mm
Repeatability 0.05 mm
Weight 9,550 kg
Power Supply 35 KVA
S Axis (Maximum Speed) 45 º/sec
L Axis (Maximum Speed) 30 º/sec
U Axis (Maximum Speed) 30 º/sec
R Axis (Maximum Speed) 36 º/sec
B Axis (Maximum Speed) 37 º/sec
T Axis (Maximum Speed) 70 º/sec



Mounting Options

Floor



Industry / Application

  • Automotive
  • Electrics / Electronics
  • Iron & Steel
  • Food Processing, Packaging
  • Handling / Assembly



Video



Perfect with

DX200
