300S+ 3044 views


The High-Speed Control System

300S+ is both a compact and a modular expandable system.

300S+ is designed for centralized and decentralized automation tasks in the manufacturing and process industry up to the highest performance range.

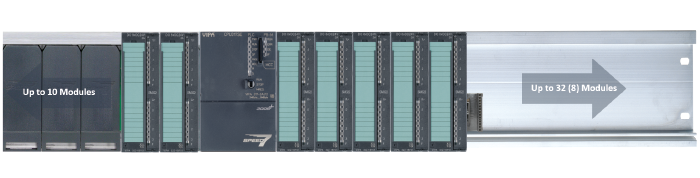

With a central extension of up to 32 modules directly to the CPU and up to 126 fieldbus slave modules, it is deployable almost anywhere. The module size allows use in almost any automation environment.

The assembly is extremely simple. First, the backplane bus connectors for communication between the modules and the CPU are placed from behind and then the modules are individually connected and secured on the rail and screwed down.

The backplane bus connectors are supplied with any I/O module. In the SPEED-Bus, the bus connection takes place via a SPEED-Bus terminal strip (PCB) integrated in the profile rail. The SPEED-Bus modules are mounted on the left of the CPU - depending on bus length 2, 6 or 10 SPEED-Bus modules can be deployed.

High Speed for Every Use

  • Integrated SPEED7 processor for outstanding performance
  • Optional SPEED-Bus for the expansion with High-Speed signal modules and communication processors


Clever Memory Management and Data Security

  • Integrated work memory – operation without additional memory card!
  • Flexible extension of the memory using a Memory Configuration Card (MCC)
  • External storage option via MMC or SD card (up to 2 GB)
  • Integrated battery backed RAM memory
  • The secure AdvancedKnowHow-Protect is available for the know how


Comprehensive Communication Capability and Modern Protocols

  • Ethernet-, PROFIBUS-DP, serial  RS485  and MPI interface on board
  • Optional: PROFINET, CANopen, Interbus, Seriel, Modbus RTU, Modbus on TCP, UDP, RFC1006


Note: Product names are registered trademark of the respective owners.


High Flexibility in Use and Application

  • Form and function compatible with S7-300 from Siemens
  • Mixed operation is supported for VIPA 300S+ and Siemens modules in the same rack
  • Programmable with WinPLC7 respectively STEP7 or TIA from Siemens
  • Centrally and decentrally deployable
  • Modularly expandable
  • Fast analog modules: Conversion of 4 analog channels in 100 µs
  • Flexible digital modules: Reaction time of the channels freely adjustable between 2.65 µs up to 40 ms


Long-term Investment Security

  • Centrally deployable up to 32 modules – directly on the CPU!
  • Individually expandable reserve in performance and capacity
  • Certifications: cULus and CE

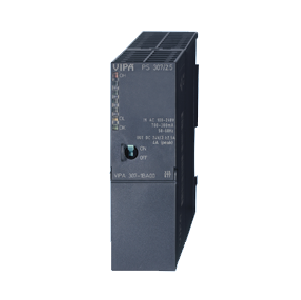

Power Supply
300S+ CPUs 300S+ Power Supply

For more 300S+ CPUs, please click here

For more Power Supply, please click here


Digital Signal Modules

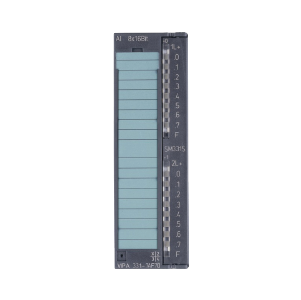

Analog Signal Modules
300S+ Digital Signal Modules 300S+ Analog Signal Modules

For more Digital Signal Modules, please click here

For more Analog Signal Modules, please click here


Communication Processors

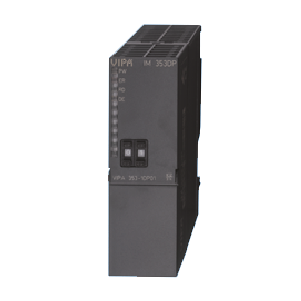

Interface Modules
300S+ Communication Processors 300S+ Interface Modules

For more Communication Processors, please click here

For more Interface Module, please click here




For more Accessories, please click here
