MPK
MPK 2869 views
Pick & Place

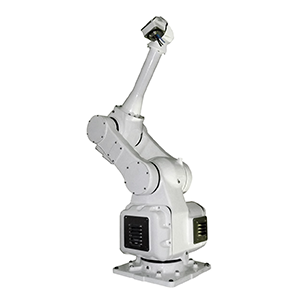

MPK2F
Pick-and-Pack Robot
The MPK2F and MPK2F-5 are high-performance 5-axis robots designed for high-speed picking and case-packing applications. Ideal for placing product into a deep case. The FS100 is a powerful controller with unmatched open software architecture.
Payload 2 kg
Max working range (Horizontal Reach) 900 mm
Technical Details
| Controlled Axes | 5 |
| Payload | 2 kg |
| Max Working Range | 900 mm |
| Repeatability | 0.5 mm |
| Weight | 72 kg |
| Power Supply | 2.0 KVA |
| S Axis (Maximum Speed) | 320 º/sec |
| L Axis (Maximum Speed) | 330 º/sec |
| U Axis (Maximum Speed) | 330 º/sec |
| R Axis (Maximum Speed) | - |
| B Axis (Maximum Speed) | 380 º/sec |
| T Axis (Maximum Speed) | 2000 º/sec |
Mounting Options
 |
 |
 |
| Floor | Wall | Ceiling |
Perfect with
MPK2F-5
High-Speed Picking and Packing
The MPK2F and MPK2F-5 are high-performance 5-axis robots designed for high-speed picking and case-packing applications. Ideal for placing product into a deep case. The FS100 is a powerful controller with unmatched open software architecture. Ideal for high-speed picking, kitting and cartoning of food and consumer goods.
Payload 5 kg
Max working range (Horizontal Reach) 900 mm
Technical Details
| Controlled Axes | 5 |
| Payload | 5 kg |
| Max Working Range | 900 mm |
| Repeatability | 0.5 mm |
| Weight | 72 kg |
| Power Supply | 2.0 KVA |
| S Axis (Maximum Speed) | 320 º/sec |
| L Axis (Maximum Speed) | 330 º/sec |
| U Axis (Maximum Speed) | 330 º/sec |
| R Axis (Maximum Speed) | - |
| B Axis (Maximum Speed) | 380 º/sec |
| T Axis (Maximum Speed) | 2000 º/sec |
Mounting Options
|
|
|
| Floor | Wall | Ceiling |
Perfect with

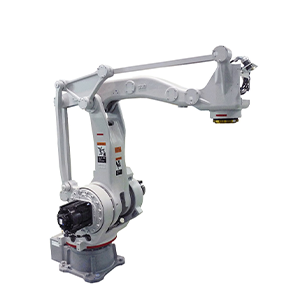

MPK50
High-speed case packing, Layer forming and Palletizing applications
4-axis, 50 kg capacity robot specifically designed for high-speed case packing, layer forming and palletizing applications. Slim design with 360° work envelope, horizontal reach of 1,893 mm and vertical reach of 1,668 mm provides unmatched agility. T-axis high moment of inertia provides ability to carry heavy payloads without compromising performance, even when load is unbalanced.
Payload 50 kg
Max working range (Horizontal Reach) 1893 mm
Technical Details
| Controlled Axes | 4 |
| Payload | 50 kg |
| Max Working Range | 1,893 mm |
| Repeatability | 0.5 mm |
| Weight | 670 kg |
| Power Supply | 6.0 KVA |
| S Axis (Maximum Speed) | 185 º/sec |
| L Axis (Maximum Speed) | 160 º/sec |
| U Axis (Maximum Speed) | 160 º/sec |
| R Axis (Maximum Speed) | - |
| B Axis (Maximum Speed) | - |
| T Axis (Maximum Speed) | 374 º/sec |
Mounting Options
Floor
